SMC气缸CG1/CDG1气缸参数:
品牌:SMC
类型:气缸
型号:CG1/CDG1

SMC气缸CG1/CDG1气缸:



型号 系列 动作方式 缸筒内径(mm)
标准型 CG1-Z 单杆双作用 20,25,32,40,50,63,80,100
标准型 CG1-Z 单作用(伸出、缩回) 20,25,32,40
标准型 CG1W-Z 双杆双作用 20,25,32,40,50,63,80,100
杆不回转型 CG1K-Z 单杆双作用 20,25,32,40,50,63
杆不回转型 CG1KW-Z 双杆双作用 20,25,32,40,50,63
直接安装型 CG1R-Z 单杆双作用 20,25,32,40,50,63
直接安装
杆不回转型
CG1KR-Z 单杆双作用 20,25,32,40,50,63
端锁气缸 CBG1 单杆双作用 20,25,32,40,50,63,80,100
低摩擦型 CG1□Q 单杆双作用 20,25,32,40,50,63,80,100

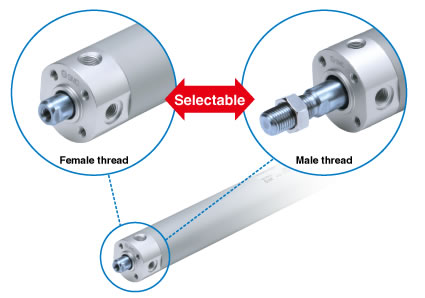

■Female rod end available as standard
Rod end styles suitable for the application can be selected.
■Various mounting bracket options
  • Suitable mounting brackets can be selected for the installation condition.
  • Improved amount of mounting freedom

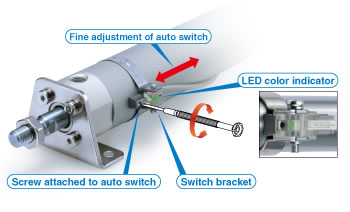

■Easy fine adjustment of auto switch position

Fine adjustment of the auto switch set position can be performed by loosening the auto switch attached screw. Operability improved compared with the conventional auto switch set position adjustment, where the complete switch mounting band requires loosening.

Transparent switch bracket improves visibility of indicator LED.

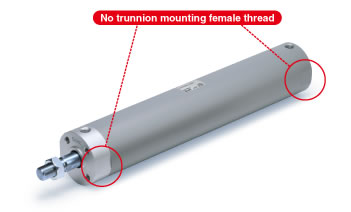

No trunnion mounting female thread added to basic type variation

No foreign matter accumulation due to the simple construction

■Direct mount, non-rotating rod type (CG1KR-Z) is added.
■The models with rod end bracket and/or pivot bracket part numbers are expanded.
  • CG1-Z (Single acting), CG1K-Z, CG1R-Z, CG1KR-Z, CG1Y-Z

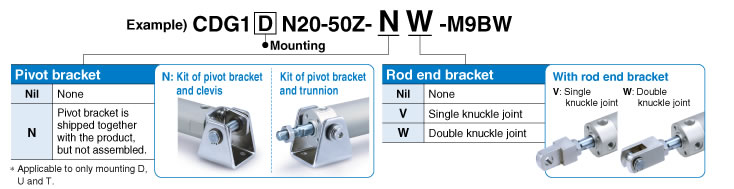

■Part numbers with rod end bracket and/or pivot bracket available

Not necessary to order a bracket for the applicable cylinder separately

Note) Mounting bracket is shipped together with the product, but not assembled.

■No environmental hazardous substances used

Compliant with EU RoHS directive. Lead free bushing is used as sliding material.

■Specifications, performance and mounting method are same as the existing product.
■Grease is selectable. (Option)
  • Grease for food processing equipment (XC85)
  • PTFE grease (X446)
■Water resistant compact auto switch now available
  • Solid state auto switch D-M9□A(V)
■Variations

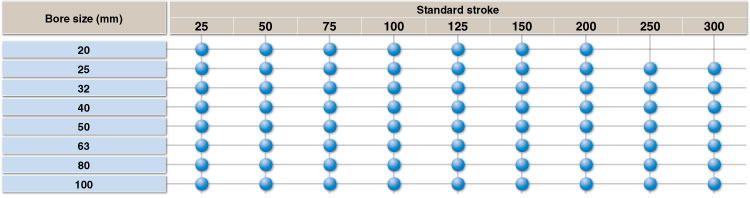

Stroke Variations

∗ For details about the clean series, refer to the WEB catalog.


Series Variations



SMC气缸CG1/CDG1气缸杆前端内螺纹标准化。磁性开关操作性提高,位置调整更容易。基本型中追加了无耳轴安装螺孔的型号。追加了带杆端金属安装件、摆动金属安装件的型号(不必再另行配备)。带磁性开关(CDG1-Z系列:CDG1,CDG1W,CDG1K,CDG1KW, CDG1R,CDG1KR,CDBG1)。SMC气缸CG1/CDG1气缸原装品牌保证。工常伴MRO代理供应SMC全系列产品,SMC气缸CG1/CDG1气缸询价报价,更多产品信息请联系在线客服或拨打服务热线。
