SMC气缸CUJ/CDUJ小型自由安装型气缸：
| 型号 | 系列 | 动作方式 | 缸筒内径（mm） |
|---|---|---|---|
| 标准型 | CUJ | 单杆双作用 | 4，6，8，10，12，16，20 |
| 标准型 | CUJ | 单作用（伸出） | 4，6，8，10，12，16，20 |

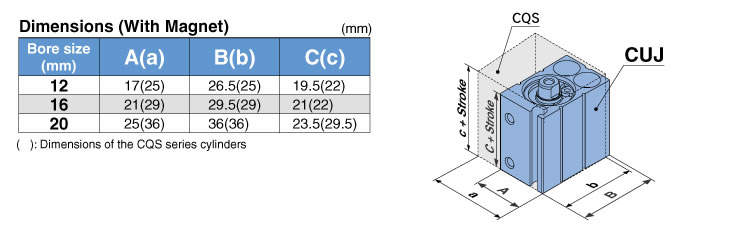

Full length is shortened by up to approx. 20%.
Volume is reduced by up to approx. 45%.
(Compared with the CQS series cylinders, double acting, with magnet)
Full length is shortened by up to approx. 64%.
Volume is reduced by up to approx. 70%.
(Compared with the CU series cylinders, double acting, without magnet)

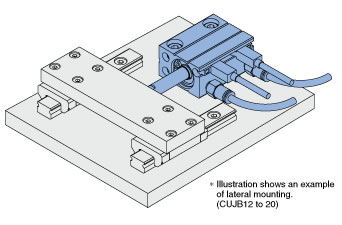

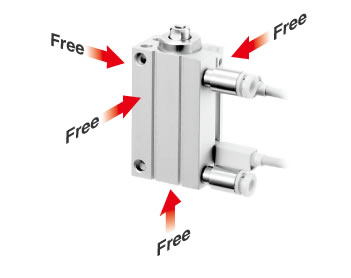

Allows more efficient installation, since four directions can be used freely.

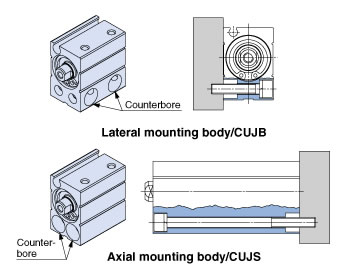

2 kinds of bodies are available.
There is no protrusion for a mounting bolt.
* ø12 to ø20 are available starting from a 5 mm stroke.

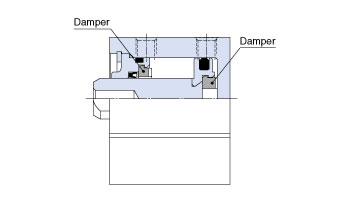

Seals can be replaced easily by just removing the rod cover (ø4 to ø10) or retaining ring (ø12 to ø20).

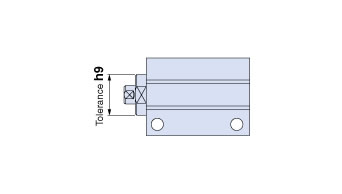

Centering can be done easily.

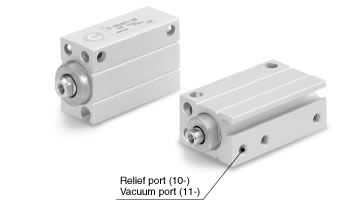

Series 10-CUJ/11-CUJ

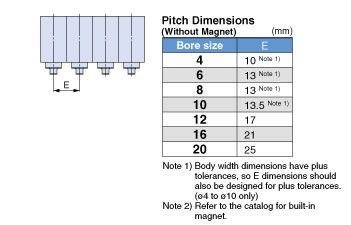

Short pitch mounting is possible.
