SMC气缸JCM/JCDM气缸

SMC气缸JCM/JCDM气缸

原装品牌保证 价格优惠 企业采购 可开增值税发票

品牌:SMC

类型:气缸

型号:JCM/JCDM

咨询热线:020-86460895

感兴趣

SMC气缸JCM/JCDM气缸参数:
品牌:SMC
类型:气缸
型号:JCM/JCDM

SMC气缸JCM/JCDM气缸:



型号 系列 动作方式 缸筒内径(mm)
标准型 JCM 单杆双作用 20,25,32,40

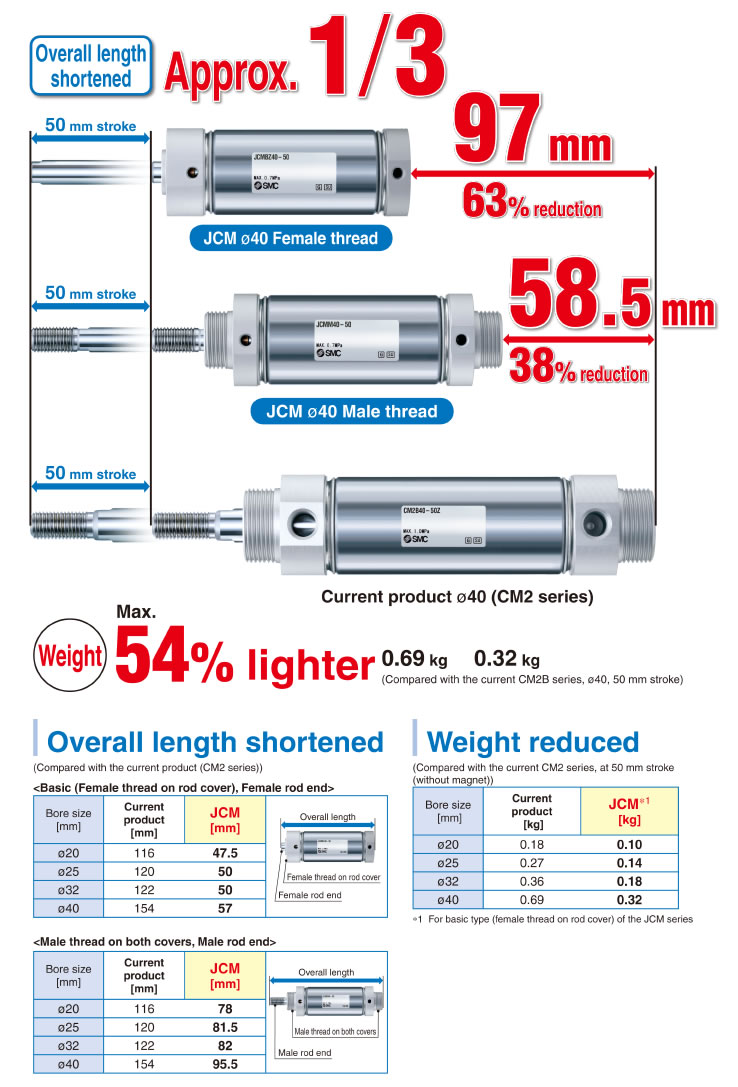

■Overall length shortened 97 mm

(Compared with the current product (CM2 series))

■Weight Max. 54% lighter 0.69 kg ➡ 0.32 kg

(Compared with the current CM2 series, at 50 mm stroke (without magnet))

■Various cover types available

Direct mounting is possible.

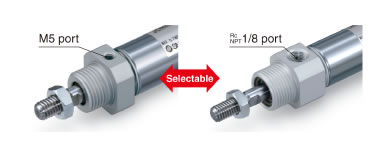

■Port size: M5 and Rc NPT1/8
available

With M5 port, the overall length is maximum 13 mm shorter (for ø20).

■Male and female rod ends
available

Male and female threads available.

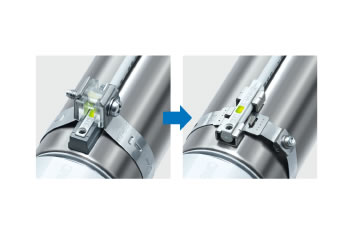

■New mounting band for auto switch

Mounting height approx. 8 mm shorter

Mounting height shortened

Improved visibility of indicator LED

There are no parts near the indicator LED, so visibility is improved.

Improved mounting workability

To mount the auto switch, simply insert it and position it correctly.



SMC气缸JCM/JCDM气缸全长缩短 最多97mm质量最多减少54%(0.69kg→0.32kg)有多种缸盖形状可选。通口尺寸:可选择M5, Rc, NPT1/8杆前端安装形式可选带磁性开关(JCDM系列:JCDM)SMC气缸JCM/JCDM气缸原装品牌保证。工常伴MRO代理供应SMC全系列产品,SMC气缸JCM/JCDM气缸询价报价,更多产品信息请联系在线客服或拨打服务热线。
