SMC电磁阀SY3000/5000/7000

SMC电磁阀SY3000/5000/7000

原装品牌保证 价格优惠 企业采购 可开增值税发票

品牌:SMC

类型:电磁阀

型号:SY3000/5000/7000

咨询热线:020-86460895

感兴趣

SMC电磁阀SY3000/5000/7000参数:
品牌:SMC
类型:电磁阀
型号:SY3000/5000/7000

SMC电磁阀SY3000/5000/7000:



系列 流量特性
4/2→5/3(A/B→EA/EB)
C[dm3/(s・bar)]
流量特性
4/2→5/3(A/B→EA/EB)
b
气缸
驱动
尺寸
消耗功率(W)
SY3000 1.6 0.19 φ50 0.35(标准)
0.1(带节电回路)
SY5000 3.6 0.17 φ63 0.35(标准)
0.1(带节电回路)
SY7000 5.9 0.20 φ80 0.35(标准)
0.1(带节电回路)



■Thanks to the flow increase, valve size can be reduced!

Saves energy and space.

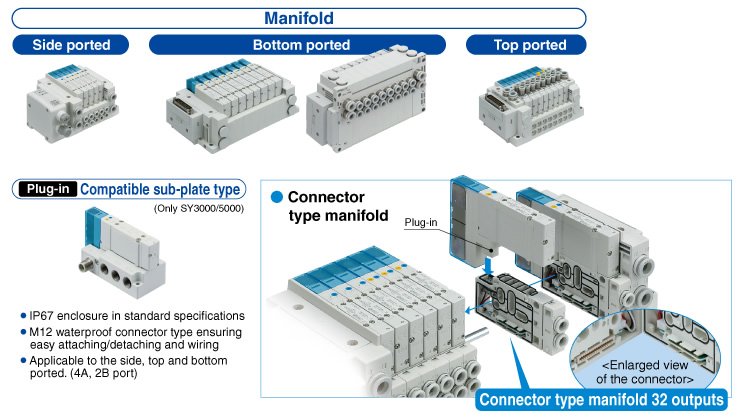

■Manifold variations

Plug-in Metal Base [IP40]


Plug-in Connector Connecting Base [IP67]

■Wiring
■Power saving
■Space saving/Improved operability

Wiring, piping and operation are integrated on one side.

Multiple layer type is available as an option.
This saves space in the lateral direction.


Bottom ported is prepared. Space saving

Top or bottom ported reduces the footprint.

4-position dual 3-port valve available
(Only rubber seal type)

Two 3-port valves built into one body


Different sizes (SY3000/5000 or SY5000/7000) can be mixed!

Possible to reduce installation space, the number of serial units and wirings.

■Improved safety

Back pressure check valve

This prevents actuator and air operated valve malfunctions caused by the exhaust from other valves.


With residual pressure release valve (SY5000/7000)


Lever Type

SUP Stop Valve Spacer (With residual pressure release valve)

Slotted Type
SUP stop valve spacer
(With residual pressure release valve)

Air supply to each valve can be stopped individually. The valve and cylinder can be replaced without stopping other devices and equipment.

Slotted Type
Double check spacer
(With residual pressure release valve)

Long time of intermediate stop and position holding are possible.

With slide locking manual override

ON/OFF operation and locking can be performed with the manual slide.

With safety slide locking manual override/SY3000/5000/7000-X13

Double action manual override prevents incorrect operation!

■Piping options
■Only for External Pilot Vacuum Release Valve with Restrictor Series SY3A□R/SY5A□R

Vacuum suction and release can be controlled with a single valve!



SMC电磁阀SY3000/5000/7000流量增大而阀的尺寸减小,更节能且更省空间。消耗功率:0.1W(带节电电路)、0.35W(标准)寿命 2亿次(金属密封)、7000万次(弹性密封)可连接插入式底板。插入式金属底座(IP40)/通过插入式插口连接的底座(IP67)集装型号:SS5Y3,SS5Y5,SS5Y7SMC电磁阀SY3000/5000/7000原装品牌保证。工常伴MRO代理供应SMC全系列产品,SMC电磁阀SY3000/5000/7000询价报价,更多产品信息请联系在线客服或拨打服务热线。
