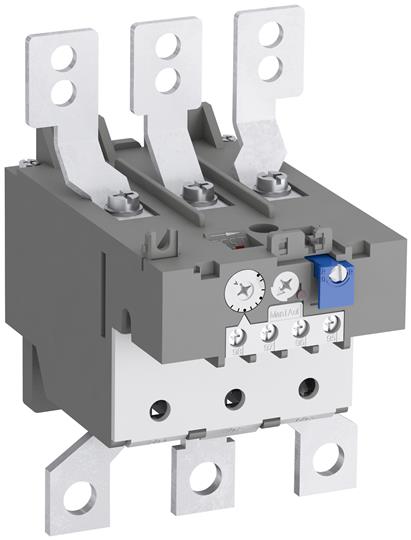

ABB TA200DU-175热过载继电器1SAZ421201R1005：
| 产品型号: | TA200DU-175 |
| 产品ID: | 1SAZ421201R1005 |
| EAN: | 4013614286056 |
| 目录说明: | TA200DU-175 Thermal Overload Relay |
| 详细描述: | The TA200DU-175 thermal overload relay is an economic electromechanical protection device for the main circuit. It offers reliable and fast protection for motors in the event of overload or phase failure. The device has trip class 10A. Further features are the temperature compensation, trip contact (NC), signal contact (NO), automatic- or manual reset selectable, trip-free mechanism, STOP- and Test function and a trip indication. The overload relays are connected directly to the block contactors. Single mounting kits are available as accessory. |
| 最小起订量: | 1 piece |
| 海关关税号: | 85364900 |
| 产品净宽: | 104 mm |
| 产品净高: | 151 mm |
| 产品净深: | 126 mm |
| 产品净重: | 0.77 kg |
| 数据手册，技术资料: |
1SBC100173C0201 |
| 数据手册，技术资料（第2部分）: |
1SAZ400502F0005 |
| 说明书和手册: |
2CDC106028M6802 |
| 尺寸图: |
1SAZ400401F0001 |
| 设置范围: | 130 ... 175 A |
| 额定工作电压: | Auxiliary Circuit 440 V DC Auxiliary Circuit 500 V AC Main Circuit 690 V AC |
| 额定工作电流 (Ie): | 175 A |
| 额定工作电流 AC-3 (Ie): | 175 A |
| 额定频率 (f): | Auxiliary Circuit 50 Hz Auxiliary Circuit 60 Hz Auxiliary Circuit DC Main Circuit 60 Hz Main Circuit 50 Hz Main Circuit DC |
| 额定冲击耐受电压 (Uimp): | Auxiliary Circuit 6 kV Main Circuit 6 kV |
| 额定绝缘电压 (Ui): | 690 V |
| 极数: | 3 |
| 辅助触点NC数量: | 1 |
| 辅助触点NO数量: | 1 |
| 保护极数: | 3 |
| 额定发热电流（自由空气） (Ith): | Auxiliary Circuit NC 5 A Auxiliary Circuit NO 5 A |
| 额定工作电流 AC-15 (Ie): | (120 V) NC 3 A (120 V) NO 1.5 A (240 V) NC 3 A (240 V) NO 1.5 A (400 V) NC 1.9 A (400 V) NO 1 A (440 V) NC 1 A (440 V) NO 1 A (500 V) NC 1 A (500 V) NO 1 A |
| 额定工作电流 DC-13 (Ie): | (125 V) NC 0.25 A (125 V) NO 0.25 A (24 V) NC 1.25 A (24 V) NO 1.25 A (250 V) NC 0.12 A (250 V) NO 0.04 A (60 V) NC 0.25 A (60 V) NO 0.25 A |
| 防护等级: | Housing IP20 Main Circuit Terminals IP00 |
| 污染等级: | 3 |
| 辅助电路连接容量: | Flexible with Ferrule 1/2x 0.75 ... 2.5 mm² Flexible 1/2x 0.75 ... 2.5 mm² Rigid 1/2x 0.75 ... 4 mm² |
| 主电路连接容量: | Hole Diameter > 10 mm² Rigid or Flexible with Cable Lug 1x 25 ... 120 mm² |
| 拧紧力矩: | Auxiliary Circuit 1 ... 1.3 N·m Main Circuit 25 N·m |
| 剥线长度: | Auxiliary Circuit 9 mm |
| 推荐的螺丝刀: | Auxiliary Circuit Pozidriv 1 Main Circuit Open Bars |
| 安装位置: | Position 1 to 6 |
| 功率损耗: | at Rated Operating Conditions per Pole 3.8 ... 6.9 W |
| 适用于: | A145 A185 AF145 AF185 AF190 AF205 |
| 标准: | IEC/EN 60947-1 IEC/EN 60947-4-1 IEC/EN 60947-5-1 UL 60947-1 UL 60947-4-1 |
| 周围环境温度: | Operation -25 ... +55 °C Operation Compensated -25 ... +55 °C Storage -40 ... +70 °C |
| 周围环境温度补偿: | Yes |
| 允许的最高工作海拔: | 2000 m |
| 抗机械冲击符合IEC 60068-2-27标准: | 11 ms Pulse 12g |
| RoHS状态: | Following EU Directive 2011/65/EU |
| 最高工作电压UL/CSA: | Main Circuit 600 V AC |
| 额定电流UL/CSA: | 175 A |
| 接触等级UL/CSA: | (NC:) B600 (NO:) C600 |
| 主电路连接容量 UL/CSA: | Flexible 1x 4-0000 AWG Stranded 1x 4-0000 AWG |
| 辅助电路连接容量 UL/CSA: | Flexible 1/2x 18-14 AWG Stranded 1/2x 18-14 AWG |
| 拧紧力矩UL/CSA: | Auxiliary Circuit 12 in·lb Main Circuit 220 in·lb |
| ABS认证: |
1SAA941000-0102 |
| BV认证: |
1SAA941000-0201 |
| CB认证: |
1SAA941004-2003 |
| CCC认证: |
1SAA941001-3804 |
| cUL 认证: |
cUL_E48139 |
| 符合性声明 - CE: |
1SAD938514-0043 |
| DNV认证: |
1SAA941000-0304 |
| DNV GL Certificate: |
1SAA941000-0304 |
| EAC认证: |
1SAA941002-2702 |
| 环境信息: |
1SAA941001-2401 |
| GL认证: |
1SAA941000-0304 |
| GOST认证: |
1SAA941000-2704 |
| 说明书和手册: |
2CDC106028M6802 |
| LR认证: |
1SAA941000-0504 |
| RMRS认证: |
1SAA941000-0704 |
| RoHS信息: |
1SAD938514-0043 |
| UL认证: |
UL_E48139 1SAA938001-1604 |
| 1级包装单元: | 1 piece |
| 1级包装宽度: | 165 mm |
| 1级包装高度: | 133 mm |
| 1级包装长度: | 151 mm |
| 1级包装 总重: | 1.02 kg |
| 1级包装 EAN: | 4013614286056 |
| 2级包装单元: | 4 piece |
| 2级包装宽度: | 280 mm |
| 2级包装高度: | 210 mm |
| 2级包装长度: | 395 mm |
| 2级包装 总重: | 8.786 kg |
| 2级包装 EAN: | 4013614494277 |
| 对象分类代码: | F |
| ETIM 4: | EC000106 - Thermal overload relay |
| ETIM 5: | EC000106 - Thermal overload relay |
| ETIM 6: | EC000106 - Thermal overload relay |
| ETIM 7: | EC000106 - Thermal overload relay |
| e级: | 7.0 27371501 |
| UNSPSC: | 39121521 |
