SMC气缸CJ2/CDJ2气缸：
| 型号 | 系列 | 动作方式 | 缸筒内径（mm） |
|---|---|---|---|
| 标准型 | CJ2-Z | 单杆双作用 | 6，10，16 |
| 标准型 | CJ2-Z | 单作用（伸・缩） | 6，10，16 |
| 标准型 | CJ2W-Z | 双杆双作用 | 6，10，16 |
| 杆不回转型 | CJ2K-Z | 单杆双作用 | 10，16 |
| 杆不回转型 | CJ2K-Z | 单作用（伸・缩） | 10，16 |
|
速度控制阀 内置型 |
CJ2Z-Z | 单杆双作用 | 10，16 |
|
速度控制阀 内置型 |
CJ2ZW-Z | 双杆双作用 | 10，16 |
| 直接安装型 | CJ2RA-Z | 单杆双作用 | 10，16 |
| 直接安装型 | CJ2RA-Z | 单作用（伸・缩） | 10，16 |
|
杆不回转型 直接安装型 |
CJ2RK-Z | 单杆双作用 | 10，16 |
|
杆不回转型 直接安装型 |
CJ2RK-Z | 单作用（伸・缩） | 10，16 |
| 端锁气缸 | CBJ2 | 单杆双作用 | 16 |

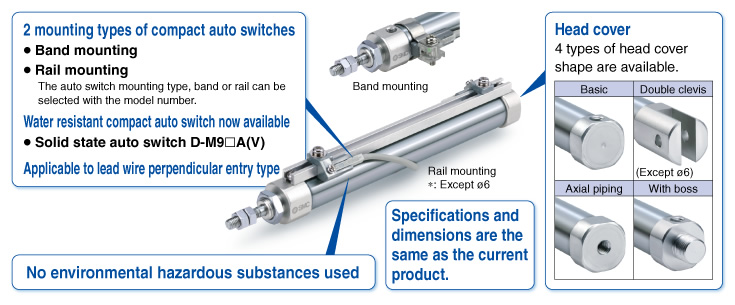

4 types
7 types(For ø6, 3 types 6 types)

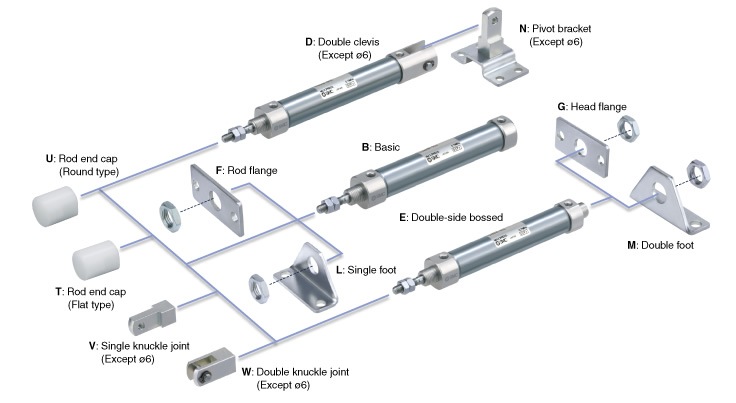

Improved amount of mounting freedom

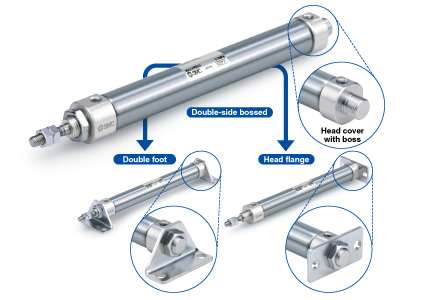

Head cover with boss is added.

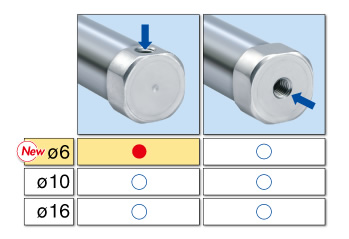

Improved piping flexibility

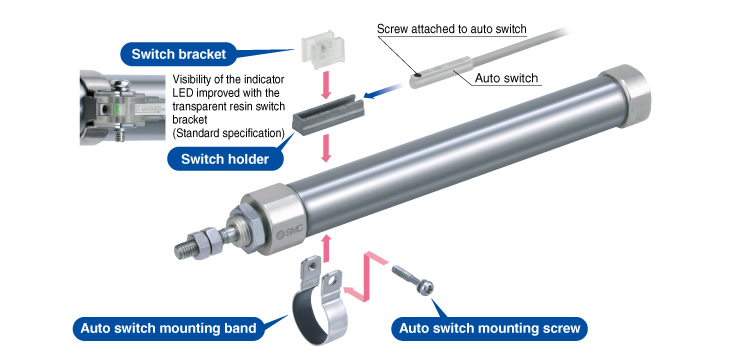

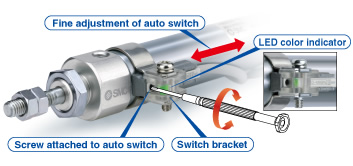

Fine adjustment of the auto switch set position can be performed by loosening the auto switch attached screw. Operability improved compared with the conventional auto switch set position adjustment, where the complete switch mounting band requires loosening.
Transparent switch bracket improves visibility of indicator LED.

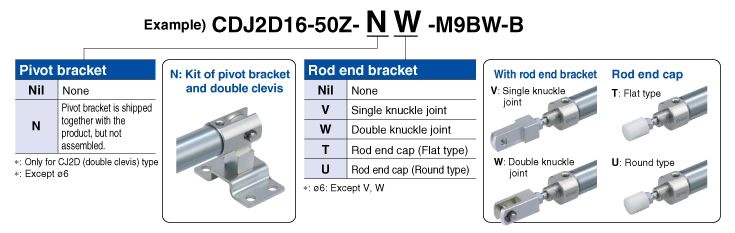

Not necessary to order a bracket for the applicable cylinder separately
Note) Mounting bracket is shipped together with the product, but not assembled.
∗: The air cylinder with end lock has the same shape as the current product.
∗: For details about the clean series, refer to the WEB catalog.
∗: Air cushion is only available for ø10 and ø16.
